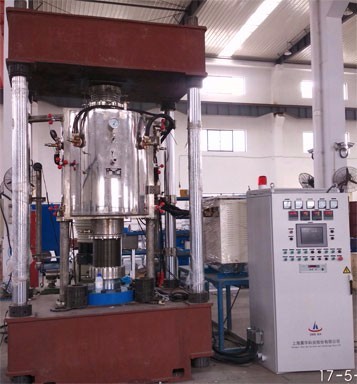

200T vacuum hot pressing sintering furnace
200T vacuum hot pressing sintering furnace
Online inquiry and order
details

Application:

The furnace mainly used for the hot pressing sintering of ceramic materials and high temperature target materials under the vacuum

and protective atmosphere.

Features:

Vertical structure, side opening door for ease of loading and unloading. Graphite heating, hard felt thermal radiation shield.

Automatic adding, stablizing and maintaining  pressure.

Main technical parameters:

Model: ZT-180-22Y

1 Max. temperature: 2200℃

2 Working size: Φ420×400mmmm

3 Pressure: 200T

4 Displacement: 150mm

5 Final vacuum: 10Pa

6 Gas-charging pressure: ≤0.03MPa
