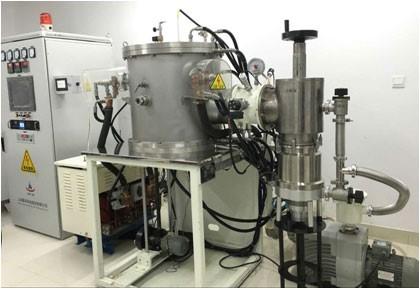

Big size tungsten mesh sintering furnace
Online inquiry and order
details

Application:

The furnace is the vertical configuration with the bottom loading. Apply to the high temperature sintering

treatment of tungsten, tantalum and molybdenum refractory metals or inorganic non-metallic.

Features:

The furnace uses tungsten mesh as heating element, comprises furnace shell, heating element, thermal insulation

shield, vacuum system and electrical control system.

1 Double-layer furnace shell with built-in water cooling jacket, stainless steel inner layer with the bright polish,

outer layer is carbon steel with the rust-proof treatment or stainless steel.

2 Heating element made of tungsten mesh or tantalum belt, round metallic thermal radiation shield, easy to clear

chamber after the sintering.

3 Control mode of PLC plus touching screen, automatic operation, simple to operate it.

4 Control system owns light-sound alarm and automatic protective function on water failure, over-temperature

and over-current etc., operating safely and reliably.

Main Technical Parameters:

Model: ZW-145-18

1 Max. temperature:1800℃

2 Power: 145KW

3 Working size: Ø350X400mm

4 Final vacuum: 6X10-5Pa

5 Leak rate:3Pa/H

6 Temperature uniformity: ±5ºC
