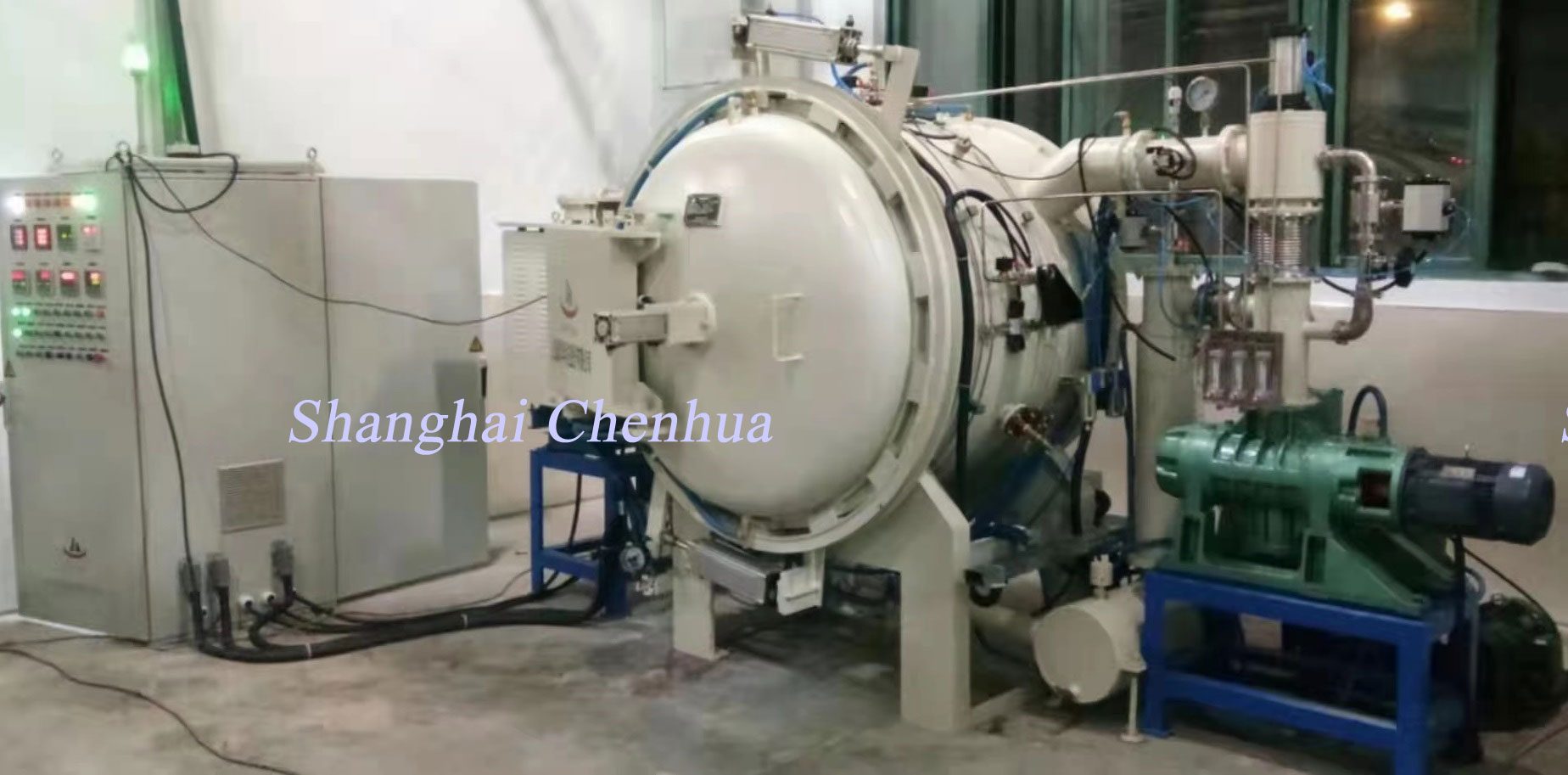

Vacuum degreasing (decarburizing) sintering furnace 先进陶瓷
Vacuum degreasing singtering furnace
Online inquiry and order
details

Use

The furnace mainly used for degreasing (decarburizing) and sintering of aluminum nitride,

silicon nitride and silicon carbide etc. under the condition of vacuum and high temperature ..

Main configuration:

1.Horizontal structure with built-in water cooling jacket. .

2.Graphite rod as heating element, electric resistance heating.

3 .Heating element along inner shell of furnace helps improving temperature uniformity.

4.Degreasing system consists of condenser and water cooling pipe joining to degreasing container,

  good effect of degreasing.

5.Automatic control mode of PLC plus touching screen.

Main technical parameters:

No.Model

Max.

Temperature

Working zoneVacuum
(WXHXD)mm
1ZT-80-222000℃200X200X3005X10-2Pa
2ZT-110-222000℃250X250X3505X10-2Pa
3ZT-150-222000℃300X300X5005X10-2Pa
4ZT-220-222000℃400X400X6005X10-2Pa
5ZT-310-222000℃500X500X7505X10-2Pa

Furnace can be customized on your request
